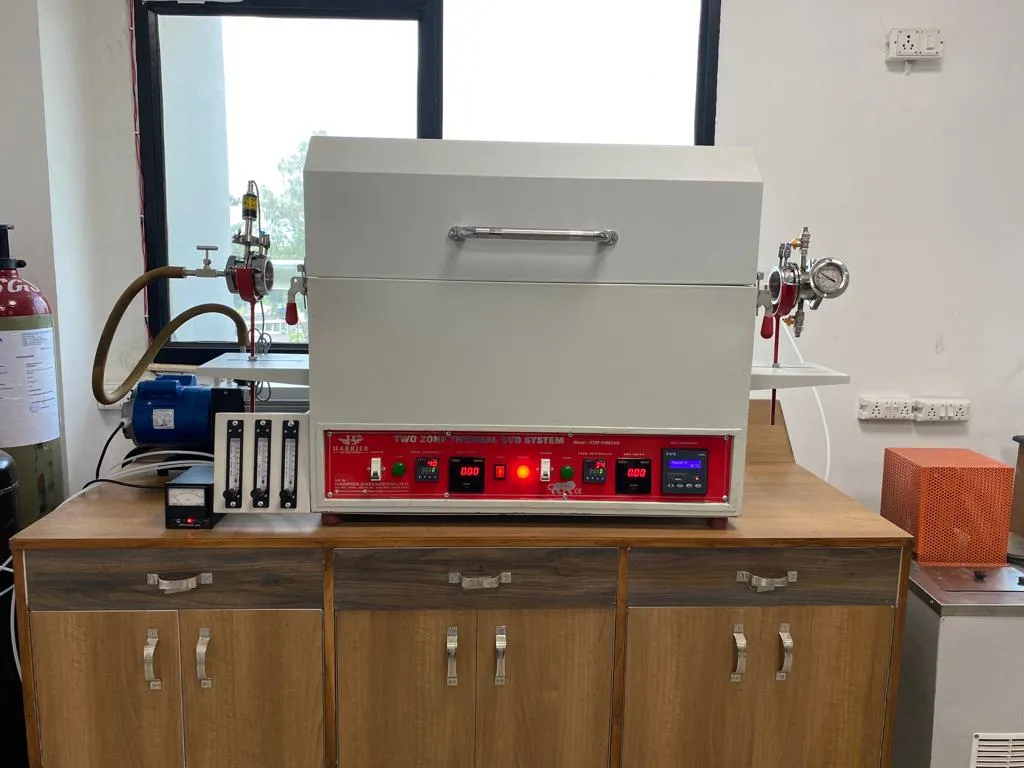

Split Tube Furnace Two Zone Manufacturers

A Split Tube Furnace Two Zone is an extremely efficient thermal processing equipment suitable for use in applications that require heating with a high level of temperature control in two zones. In the Split Tube Furnace Two-Zone, it is possible to make two temperature programs in one tube, thus providing an advantage in conducting research, performing various tests, and other industrial processes. With its split body design, access to the furnace tube becomes easy when loading or unloading samples.

At Muffle Furnace, we offer high-quality Split Tube Furnace Two-Zone equipment that is known for its precision and performance capabilities. Each Split Tube Furnace Two Zone is manufactured using first-class materials that provide a high level of reliability and energy efficiency. This type of furnace is used by our customers in laboratories, research centers, universities, and industries.

Split Tube Furnace Two Zone Suppliers in India

There has been a tremendous increase in the demand for Split Tube Furnace Two Zones systems all over India, owing to their flexibility and capacity to cater to several high-temperature applications. The ability to have control over two heating zones makes the Split Tube Furnace Two-Zones very useful, as they enable researchers to carry out several thermal operations and also make it possible to generate temperature gradients. They are suitable for use in annealing, sintering operations, catalyst testing, nanotechnology experiments, and other scientific investigations.

Benefits of Split Tube Furnace Two Zone

  • Suitable for operation under air, inert gas, or controlled atmosphere conditions.
  • Hgih-quality insulation reduces heat loss and improves energy efficiency.
  • Advanced digital temperature controllers enable precise monitoring and process control.
  • Durable construction ensures reliable performance and a long operational lifespan.
  • Reduces maintenance time and improves overall laboratory productivity.
  • Ideal for research institutions, universities, and industrial laboratories.

We at Muffle Furnace act as one of the most dependable Split Tube Furnace Two Zones Suppliers in India. We ensure to offer customized furnaces based on our clients’ preferences and demands. Our furnaces are appreciated for their uniform temperature distribution, sturdy construction, ease of operation, and durability.

Product Specifications

SpecificationDetails
Furnace TypeSplit Tube Furnace Two Zone
Heating Zones2 Independent Heating Zones
Maximum TemperatureUp to 1200°C / 1400°C / 1600°C
Temperature ControlPID Digital Programmable Controller
Temperature Accuracy±1°C
Heating ElementsKanthal, SiC, or MoSi₂
Tube MaterialQuartz Tube or Alumina Tube
Tube Diameter25 mm to 150 mm
Heating RateAdjustable Up to 20°C/Min
Working AtmosphereAir, Inert Gas, or Vacuum
Insulation MaterialHigh-Density Ceramic Fiber
Power Supply220V / 415V AC, 50 Hz
Safety FeaturesOver-Temperature Protection System
ApplicationsAnnealing, Sintering, CVD, Material Research, Heat Treatment
